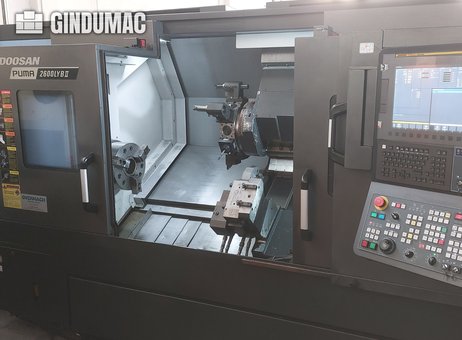

DOOSAN Puma 2600 LYB II верстат з ЧПУ

DOOSAN Puma 2600 LYB II CNC lathe
Top seller
Price on request
Make an offer
Manufacturer
DOOSAN
Model
Puma 2600 LYB II
Year
2021
Location
Italy
Category
Lathes - CNC lathes
Product id
P260311226
Buy this machine
Language
Language
CNC струг DOOSAN Puma 2600 LYB II
CNC soustruh DOOSAN Puma 2600 LYB II
DOOSAN Puma 2600 LYB II CNC-drejebænk
DOOSAN Puma 2600 LYB II CNC-Drehmaschine
Τόρνος CNC DOOSAN Puma 2600 LYB II
DOOSAN Puma 2600 LYB II CNC lathe
Torno CNC DOOSAN Puma 2600 LYB II
Tour CNC DOOSAN Puma 2600 LYB II
CNC tokarski stroj DOOSAN Puma 2600 LYB II
DOOSAN Puma 2600 LYB II CNC esztergagép
Tornio CNC DOOSAN Puma 2600 LYB II
DOOSAN Puma 2600 LYB II CNC tekinimo staklės
DOOSAN Puma 2600 LYB II CNC-draaibank
Tokarka CNC DOOSAN Puma 2600 LYB II
Torno CNC DOOSAN Puma 2600 LYB II
Strung CNC DOOSAN Puma 2600 LYB II
DOOSAN Puma 2600 LYB II Токарный станок с ЧПУ
CNC strug DOOSAN Puma 2600 LYB II
DOOSAN Puma 2600 LYB II CNC-svarv
CNC torna DOOSAN Puma 2600 LYB II
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
1350 mm
Turning Ø
376 mm
Ø above the bed
780 mm
Ø above transversing slide
630 mm
Type of CNC
X-axis
260 mm
Z-axis
830 mm
Spindle taper
ASA A2-11
Spindle bore
115 mm
Number of turrets
1
Number of tools on turret
12
Turning speed
4500 rpm
Spindle motor power
22 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
4438.0
× 2005.0
× 2163.0
Weight
7500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Doosan Puma 2600 LYBII
Last availability date
25/04/2026
Show more
Automatic description (AI-Generated)
The DOOSAN Puma 2600 LYB II is a high-performance 4-axis CNC lathe machine manufactured in 2021. This model offers a maximum turning diameter of 376 mm and a turning length of 1,350 mm, making it suitable for a variety of precision turning applications. The machine features a robust spindle motor with a power rating of 22 kW and a spindle bore diameter of 115 mm, supporting bar capacities around 102–103 mm. The lathe includes a single turret equipped with 12 tool stations, providing flexibility for multiple tooling setups.
The machine dimensions are 4438 mm in length, 2005 mm in width, and 2163 mm in height, with an overall weight of 7,500 kg. It supports axis travels of 260 mm on the X-axis and 830 mm on the Z-axis, allowing for a wide range of machining operations. The machine’s turning capabilities include a swing over bed of 780 mm and a swing over the carriage of 630 mm.

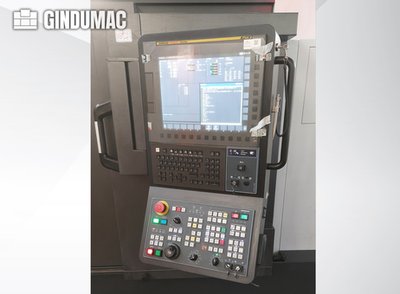

This DOOSAN lathe is equipped with a live tailstock and a steady rest, enhancing its ability to support long workpieces. The control panel is located on the right side of the machine and features a display along with various buttons and knobs for operational control. The working area is open and clean, with a three-jaw chuck mounted and ready for use. A coolant or chip removal nozzle is positioned near the chuck to assist with machining processes.

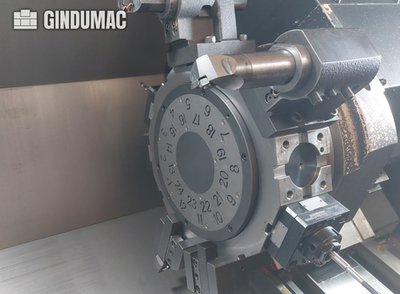

The turret shows some signs of wear but remains intact and functional, with numbered tool positions visible. The machine exterior shows minor signs of use but no visible damage, indicating it has been well-maintained. Electrical supply requirements are AC 400V with a capacity of 46.4 kVA.
Overall, the DOOSAN Puma 2600 LYB II is a versatile and capable CNC lathe suitable for demanding turning tasks, combining substantial power, precision, and practical features for efficient machining.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 4-axis DOOSAN Puma 2600 LYB II was manufactured in 2021. It features a maximum turning diameter of 376 mm and a turning length of 1,350 mm. The machine includes a 12-station turret, a live tailstock, and a steady rest with a diameter range from 40 mm to 200 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600 LYB II horizontal turning machine we have for sale. Contact us for further details.Capacity
Swing over bed: 780 mm
Swing over carriage: 630 mm
Recommended turning diameter: 315 mm
Max turning diameter: 376 mm
Max turning length: 1,350 mm
Bar capacity: 102–103 mm
Main spindle
Nose: ASA A2-11
Bearing diameter: 160 mm
Through-spindle bore: 115 mm
C-axis indexing accuracy: 0.001°
Sub-spindle (if equipped)
Speed: 4,500 rpm
Nose: ASA A2-5
Bore: 62 mm
Turret
Stations: 24 (option installed; standard 12)
Tool size: 25 mm
Boring bar capacity: 50 mm
Indexing time: 0.15 s
Live tool speed: 5,000 rpm
Axes
C rotation: 360°
Rapid traverse
X: 30 m/min
Z: 30 m/min
C: 10 m/min
Tailstock
Type: Live tailstock
Quill diameter: 100 mm
Taper: MT5
Quill stroke: 100 mm
Motor / Power
Live tool motor: 7.5 / 1.5 kW
Feed motor: 3.0 / 4.0 / 3.0 kW
Coolant pump motor: 0.4 kW
Electrical capacity: 46.40 kVA
Additional equipment
315 mm chuck
MORARI steady rest, 40–200 mm diameter range
Three motorized radial Eppinger live toolholders/spindles
Tool presetting system (tool presetter)
Counter Spindle: yes
Driven Tools: yes
Machine Height: 2163 mm
Machine Length: 4438 mm
Machine Weight: 7500 kg
Machine Width: 2005 mm
Number of Axes: 4
Spindle Power: 22 kW
Spindle Speed: 2800 RPM
X-axis Travel: 260 mm
Y-axis Travel: 105 mm
Z-axis Travel: 830 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2019
Offers online
1985
Last activity
April 26, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
Seller's description
This 4-axis DOOSAN Puma 2600 LYB II was manufactured in 2021. It features a maximum turning diameter of 376 mm and a turning length of 1,350 mm. The machine includes a 12-station turret, a live tailstock, and a steady rest with a diameter range from 40 mm to 200 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600 LYB II horizontal turning machine we have for sale. Contact us for further details.Capacity
Swing over bed: 780 mm
Swing over carriage: 630 mm
Recommended turning diameter: 315 mm
Max turning diameter: 376 mm
Max turning length: 1,350 mm
Bar capacity: 102–103 mm
Main spindle
Nose: ASA A2-11
Bearing diameter: 160 mm
Through-spindle bore: 115 mm
C-axis indexing accuracy: 0.001°
Sub-spindle (if equipped)
Speed: 4,500 rpm
Nose: ASA A2-5
Bore: 62 mm
Turret
Stations: 24 (option installed; standard 12)
Tool size: 25 mm
Boring bar capacity: 50 mm
Indexing time: 0.15 s
Live tool speed: 5,000 rpm
Axes
C rotation: 360°
Rapid traverse
X: 30 m/min
Z: 30 m/min
C: 10 m/min
Tailstock
Type: Live tailstock
Quill diameter: 100 mm
Taper: MT5
Quill stroke: 100 mm
Motor / Power
Live tool motor: 7.5 / 1.5 kW
Feed motor: 3.0 / 4.0 / 3.0 kW
Coolant pump motor: 0.4 kW
Electrical capacity: 46.40 kVA
Additional equipment
315 mm chuck
MORARI steady rest, 40–200 mm diameter range
Three motorized radial Eppinger live toolholders/spindles
Tool presetting system (tool presetter)
Counter Spindle: yes
Driven Tools: yes
Machine Height: 2163 mm
Machine Length: 4438 mm
Machine Weight: 7500 kg
Machine Width: 2005 mm
Number of Axes: 4
Spindle Power: 22 kW
Spindle Speed: 2800 RPM
X-axis Travel: 260 mm
Y-axis Travel: 105 mm
Z-axis Travel: 830 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
