Gildemeister TWIN 65 верстат з ЧПУ

Gildemeister TWIN 65 CNC lathe
Top seller
Price on request
Make an offer
Manufacturer
Gildemeister
Model
TWIN 65
Year
2006
Location
Germany
Category
Lathes - CNC lathes
Product id
P260320182
Buy this machine
Language
Language
CNC струг Gildemeister TWIN 65
CNC soustruh Gildemeister TWIN 65
Gildemeister TWIN 65 CNC-drejebænk
Gildemeister TWIN 65 CNC-Drehmaschine
Τόρνος CNC Gildemeister TWIN 65
Gildemeister TWIN 65 CNC lathe
Torno CNC Gildemeister TWIN 65
Tour CNC Gildemeister TWIN 65
CNC tokarski stroj Gildemeister TWIN 65
Gildemeister TWIN 65 CNC esztergagép
Tornio CNC Gildemeister TWIN 65
Gildemeister TWIN 65 CNC tekinimo staklės
Gildemeister TWIN 65 CNC-draaibank
Tokarka CNC Gildemeister TWIN 65
Torno CNC Gildemeister TWIN 65
Strung CNC Gildemeister TWIN 65
Gildemeister TWIN 65 Токарный станок с ЧПУ
CNC strug Gildemeister TWIN 65
Gildemeister TWIN 65 CNC-svarv
CNC torna Gildemeister TWIN 65
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
345 mm
Turning Ø
100 mm
Ø above the bed
250 mm
Ø above transversing slide
200 mm
Length between centers
580 mm
Type of CNC
SIEMENS 840 Powerline
X-axis
300 mm
Z-axis
650 mm
Spindle taper
VDI 30
Spindle bore
65 mm
Number of turrets
1
Number of tools on turret
24
Number of rotating tools
12
Turning speed
5000 rpm
Spindle motor power
26 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
7855.0
× 2500.0
× 2900.0
Weight
12000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Gildemeister TWIN 65
Last availability date
25/04/2026
Show more
Automatic description (AI-Generated)
The Gildemeister TWIN 65 is a robust CNC lathe manufactured in 2006, designed for high-precision horizontal turning operations. This machine features a single turret equipped with 24 tool stations, allowing versatile tooling options. It has a spindle motor power of 26 kW and a maximum spindle speed of 5000 rpm, suitable for a wide range of machining tasks. The lathe supports X-axis travel of 300 mm and Z-axis travel of 650 mm, providing ample capacity for various workpieces.
With overall dimensions of 7855 mm in length, 2500 mm in width, and 2900 mm in height, and weighing approximately 12,000 kg, the TWIN 65 is a substantial machine suited for industrial environments. The tool holder uses a VDI 30 taper, and the tool changer is turret-type, facilitating efficient tool changes during operation.
Additional features include a control system by Siemens, model 840 Powerline, enhancing operational precision and programmability. The machine is equipped with a counter spindle, driven tools, a chip conveyor, internal coolant supply, and a touch probe, supporting complex machining processes and improving productivity.

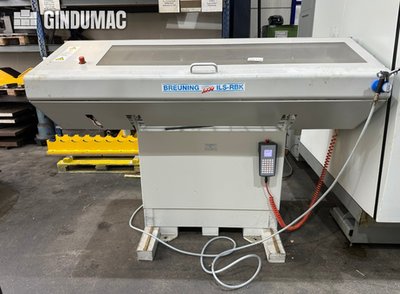

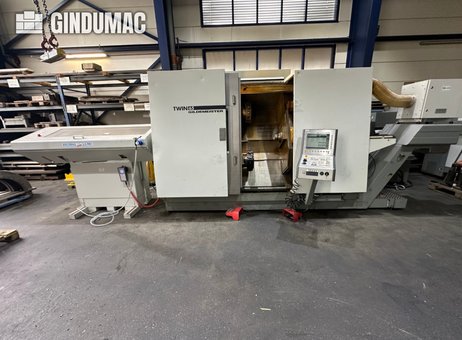

The lathe is shown with an attached bar feeder on the left side, which aids in automated material feeding, and a control panel mounted on the right side for operator convenience. The machine appears clean and well-maintained with only minor surface marks, reflecting careful usage. This Gildemeister TWIN 65 CNC lathe is a capable and versatile solution for demanding turning applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 9-axis Gildemeister TWIN 65 was manufactured in 2006. It features a spindle power of 65 kVA and a maximum spindle speed of 5000 rpm. The machine includes a tool magazine with 24 tools and a turret-type tool changer. With a robust weight of 12,000 kg and dimensions of 7855 mm x 2500 mm x 2900 mm, this horizontal turning machine is equipped with special features like a touch probe and internal coolant supply. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 65 machine we have for sale. Contact us for further details.Electrical connection/total power: 65 kVA
Tool holder: VDI 30
Tool changer type: Turret
Configuration: Multi-slide turning center with Slide 1 (Top), Slide 2 (Bottom), and Slide 3 (Counter spindle)
Axes travels:
Slide 1 (Top): X1 (Cross) 300 mm; Z1 (Longitudinal) 650 mm; Y1 (Vertical) ±40 mm (only on version with Y-axis)
Slide 2 (Bottom): X2 (Cross) 180 mm; Z2 (Longitudinal) 650 mm
Slide 3 (Counter spindle): X3 (Transverse) 175 mm; Z3 (Longitudinal) 670 mm
Counter spindle: max speed 5000 rpm; power 26 kW (40% ED) / 21 kW (100% ED)
C-axis: Integrated for oriented stopping and contouring
Driven tools: 12 stations per turret; all 12 stations capable of driven tools; max power 11.7 kW; speed up to 4000 rpm
Additional equipment
Touch probe
Chip conveyor
Internal coolant supply
Control Brand: SIEMENS
Control Model: 840 Powerline
Counter Spindle: yes
Driven Tools: yes
Machine Height: 2900 mm
Machine Length: 7855 mm
Machine Weight: 12000 kg
Machine Width: 2500 mm
Number of Axes: 3
Number of Tools: 24
Spindle Power: 26 kW
Spindle Speed: 5000 RPM
Taper Size: VDI 30
X-axis Travel: 300 mm
Z-axis Travel: 650 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
