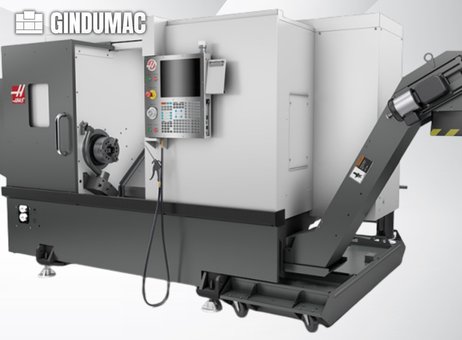

HAAS ST-20 CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | Haas |
| Рік виробництва | 2022 |
| Manufacturer | HAAS |
| Model | ST-20 |
| Year | 2022 |
| Location | Spain |
| Category | Lathes - CNC lathes |
| Turning length | 298 mm |
| Turning Ø | 63.5 mm |
| Ø above the bed | 533 mm |
| Ø above transversing slide | 635 mm |
| Length between centers | 1300 mm |
| X-axis | 213 mm |
| Z-axis | 572 mm |
| Max workpiece weight | 200 kg |
| Spindle bore | 76 mm |
| Turning speed | 4000 rpm |
| Spindle motor power | 14.9 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3620.0 × 2290.0 × 2340.0 |
| Weight | 4000 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Haas ST-20 |
| Last availability date | 05/10/2026 |
| Product id | P260929273 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | lathe |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | A26 |
| Number of tools on turret | 12 |
Опис
Horizontal turning machine manufactured in 2022. This HAAS ST-20 features a maximum cutting diameter of 13.00 in and a maximum cutting length of 22.5 in. It includes a robust spindle power rating of 20.0 hp and a rapid rate of 945 ipm for both axes. If you are looking to get high-quality turning capabilities, consider the HAAS ST-20 machine we have for sale. Contact us for further details.Chuck size: 8.3 in / 210 mm
Max part swing: 21.0 in / 533 mm
Max cutting diameter (BOT turret): 13.00 in / 330 mm
Max cutting diameter (BMT65 turret): 11.75 in / 298 mm
Max cutting length: 22.5 in / 572 mm
Bar capacity: 2.50 in / 64 mm
X-axis rapid rate: 945 ipm / 24.0 m/min
Z-axis rapid rate: 945 ipm / 24.0 m/min
X-axis max thrust: 4,100 lbf / 18,238 N
Z-axis max thrust: 5,100 lbf / 22,686 N
Spindle nose: A2-6
Spindle drive system: Direct speed, belt drive
Spindle max torque: 150.0 ft-lbf @ 500 rpm / 203.0 Nm @ 500 rpm
Spindle bore: 3.50 in / 88.9 mm
Turret stations: 12 stations (VDI 40)
Boring bar rear clearance: 4.00 in / 102.0 mm
Coolant tank capacity: 55 gal / 208 L
Coolant pump: 1 HP / 0.75 kW variable-flow (45 L/min @ 2 bar)
Air requirement: 4 scfm @ 100 psi / 113 L/min @ 6.9 bar
Air pressure minimum: 80 psi / 5.5 bar
Air line / coupler size: 3/8 in
Low voltage electrical: 220 VAC (3 phase), 40 A full load
High voltage electrical: 440 VAC (3 phase), 20 A full load (internal non-isolated transformer 380–480V included)
Shipping dimensions: 143 in x 90 in x 92 in / 362 cm x 229 cm x 234 cm
Control system: Haas NextGen Control with touchscreen interface, 1 GB memory, Ethernet, Wi‑Fi, HaasConnect Remote Monitoring, and Haas Drop
Included machine features/options: Automatic Tool Presetter; Programmable Hydraulic Tailstock (MT4); Rigid Tapping; M130 Media Display; Safe Run; Power Failure Detection Module; Visual Part Programming System
Additional equipment
Belt-type chip conveyor
Chip strainer filter kit (200 micron)
Control Brand: HAAS
Counter Spindle: no
Driven Tools: no
Machine Weight: 4000 kg
Number of Axes: 2
Tool Stations: 12
Spindle Power: 14.9 kW
Spindle Speed: 4000 RPM
Taper Size: VDI 40
X-axis Travel: 213 mm
Z-axis Travel: 572 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Max part swing: 21.0 in / 533 mm
Max cutting diameter (BOT turret): 13.00 in / 330 mm
Max cutting diameter (BMT65 turret): 11.75 in / 298 mm
Max cutting length: 22.5 in / 572 mm
Bar capacity: 2.50 in / 64 mm
X-axis rapid rate: 945 ipm / 24.0 m/min
Z-axis rapid rate: 945 ipm / 24.0 m/min
X-axis max thrust: 4,100 lbf / 18,238 N
Z-axis max thrust: 5,100 lbf / 22,686 N
Spindle nose: A2-6
Spindle drive system: Direct speed, belt drive
Spindle max torque: 150.0 ft-lbf @ 500 rpm / 203.0 Nm @ 500 rpm
Spindle bore: 3.50 in / 88.9 mm
Turret stations: 12 stations (VDI 40)
Boring bar rear clearance: 4.00 in / 102.0 mm
Coolant tank capacity: 55 gal / 208 L
Coolant pump: 1 HP / 0.75 kW variable-flow (45 L/min @ 2 bar)
Air requirement: 4 scfm @ 100 psi / 113 L/min @ 6.9 bar
Air pressure minimum: 80 psi / 5.5 bar
Air line / coupler size: 3/8 in
Low voltage electrical: 220 VAC (3 phase), 40 A full load
High voltage electrical: 440 VAC (3 phase), 20 A full load (internal non-isolated transformer 380–480V included)
Shipping dimensions: 143 in x 90 in x 92 in / 362 cm x 229 cm x 234 cm
Control system: Haas NextGen Control with touchscreen interface, 1 GB memory, Ethernet, Wi‑Fi, HaasConnect Remote Monitoring, and Haas Drop
Included machine features/options: Automatic Tool Presetter; Programmable Hydraulic Tailstock (MT4); Rigid Tapping; M130 Media Display; Safe Run; Power Failure Detection Module; Visual Part Programming System
Additional equipment
Belt-type chip conveyor
Chip strainer filter kit (200 micron)
Control Brand: HAAS
Counter Spindle: no
Driven Tools: no
Machine Weight: 4000 kg
Number of Axes: 2
Tool Stations: 12
Spindle Power: 14.9 kW
Spindle Speed: 4000 RPM
Taper Size: VDI 40
X-axis Travel: 213 mm
Z-axis Travel: 572 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
