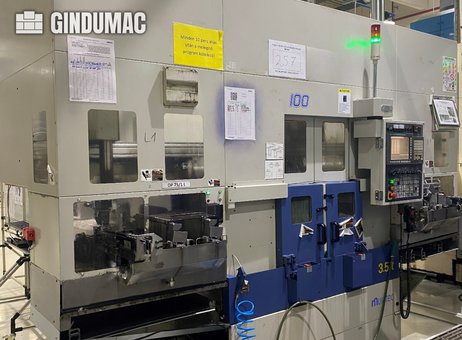

MURATA MW100 CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | Fanuc |
| Рік виробництва | 2012 |
| Manufacturer | MURATA |
| Model | MW100 |
| Year | 2012 |
| Location | Hungary |
| Category | Lathes - CNC lathes |
| Turning length | 220 mm |
| Turning Ø | 120 mm |
| Ø above the bed | 250 mm |
| Ø above transversing slide | 120 mm |
| Length between centers | 340 mm |
| X-axis | 24 mm |
| Z-axis | 24 mm |
| Max workpiece weight | 3 kg |
| Spindle bore | 62 mm |
| Turning speed | 4500 rpm |
| Spindle motor power | 11 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3850.0 × 1000.0 × 1400.0 |
| Weight | 3500 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Murata MW100 |
| Last availability date | 05/10/2026 |
| Product id | P261001168 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | Fanuc FS31i - model A |
| Number of turrets | 2 |
| Number of rotating tools | 2 |
| Spindle taper | jis a25 |
| Number of tools on turret | 10 |
Опис
This 3-axis Murata MW100 Horizontal Twin-Spindle CNC Turning Center was manufactured in 2012. It features a maximum spindle speed of 4,500 rpm and a tool capacity of 2 × 8 positions. With a compact design and included chip conveyor, this machine is ideal for efficient turning applications. If you are looking to get high-quality turning capabilities, consider the Murata MW100 machine we have for sale. Contact us for further details.Number of axes: 3+2
Number of spindles: 2
Tooling
Tool capacity: 2 × 8 positions
Tool holder: Not specified
Utilities
Coolant pressure: 5 bar
Electrical consumption: 10 kWh
Compressed air consumption: 16.4 m³/h
Documentation
Electrical user manual: Yes
Mechanical user manual: No
Notes / Description
High-speed automatic CNC two-station/front turning machine
3 units available
Additional equipment
Chip conveyor: Included
Dimensions: 3,850 × 1,000 × 1,400 mm

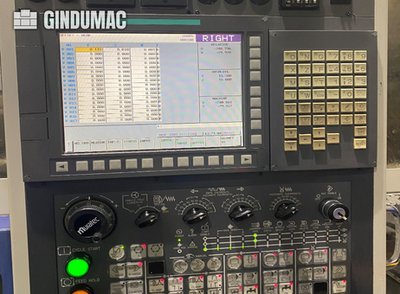

Control Brand: FANUC
Control Model: FS30i
Counter Spindle: no
Driven Tools: no
Machine Height: 2600 mm
Machine Length: 1620 mm
Machine Weight: 3500 kg
Machine Width: 3360 mm
Number of Axes: 3
Spindle Speed: 4500 RPM
X-axis Travel: 265 mm
Z-axis Travel: 115 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
