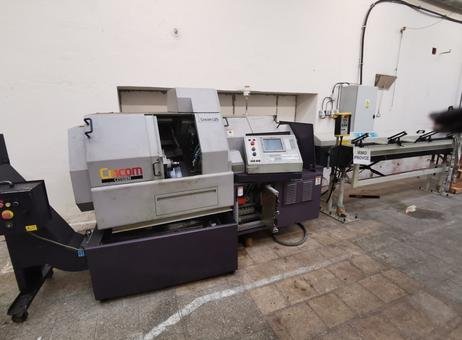

CITIZEN L-25 CNC multi-spindle lathe
20500.00 €
Negotiable
| Condition | gebraucht |
|---|---|
| Manufacturer | Citizen |
| Year of manufacture | 1997 |
| Manufacturer | CITIZEN |
| Model | L-25 |
| Year | 1997 |
| Location | Czech Republic |
| Category | Lathes - CNC multi-spindle lathes |
| Max. Ø | 48 mm |
| Nbr of spindles | 6 |
| Max. length | mm |
| Nbr of axes | 4 |
| Number of tools | 12 |
| Spindle speed | rpm |
| Spindle power | kW |
| state | excellent |
| At local norms | yes |
| status | visible |
| Datasheet | Citizen L-20 |
| Last availability date | 13/10/2026 |
| Product id | P261013280 |
| Client type | Private person / Without company |
| Active since | 2017 |
| Offers online | 1 |
| Last activity | Oct. 13, 2026 |
| Type of CNC | dualspindle machining center |
Description
2 machines for sale. (Advertised price is for 1 machine)

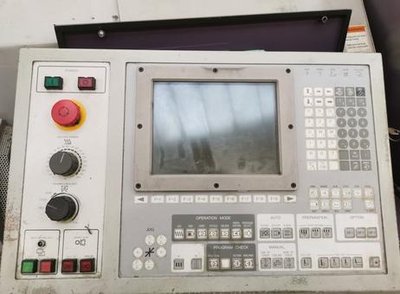

Meldas 500 control system
Maximum bar diameter: 25 mm
Maximum machining length: 250 mm per clamping
Maximum clamping diameter of the rear spindle: 25 mm
Main spindle speed: 200–8,000 rpm, 3.75/5.5 kW
Cross-slide tool speed: 200–5,000 rpm, 0.4 kW
Tailstock spindle speed: 200–6,000 rpm, 3.75/5.5 kW
Maximum number of tools: 19
Turning tool dimensions: 16 x 16
Axes X1, Y1, Y1, C1, X2, Z2
Rapid traverse: 20 m/min
Total power consumption: 11 kW
Footprint: 1.3 x 2.8 m, height 1.76 m
Weight: 2.6 t
Bar feeder: LNS Hydrobar Mini-Sprint S2
Max. bar length: 3.45 m
Dimensions: 4 x 1 m, height 1.3 m
Weight: approx. 700 kg

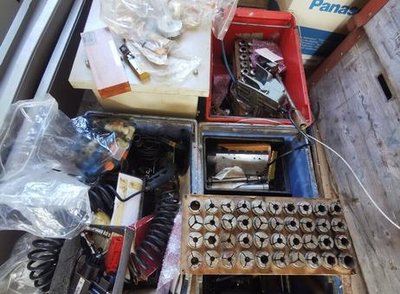

The machine is in good condition. It was primarily used to machine brass. Reference points must be set. Powered on. Complete documentation. We will include some collets and guide sleeves with the machine. There are some push rods included with the feeder. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Meldas 500 control system
Maximum bar diameter: 25 mm
Maximum machining length: 250 mm per clamping
Maximum clamping diameter of the rear spindle: 25 mm
Main spindle speed: 200–8,000 rpm, 3.75/5.5 kW
Cross-slide tool speed: 200–5,000 rpm, 0.4 kW
Tailstock spindle speed: 200–6,000 rpm, 3.75/5.5 kW
Maximum number of tools: 19
Turning tool dimensions: 16 x 16
Axes X1, Y1, Y1, C1, X2, Z2
Rapid traverse: 20 m/min
Total power consumption: 11 kW
Footprint: 1.3 x 2.8 m, height 1.76 m
Weight: 2.6 t
Bar feeder: LNS Hydrobar Mini-Sprint S2
Max. bar length: 3.45 m
Dimensions: 4 x 1 m, height 1.3 m
Weight: approx. 700 kg
The machine is in good condition. It was primarily used to machine brass. Reference points must be set. Powered on. Complete documentation. We will include some collets and guide sleeves with the machine. There are some push rods included with the feeder. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
