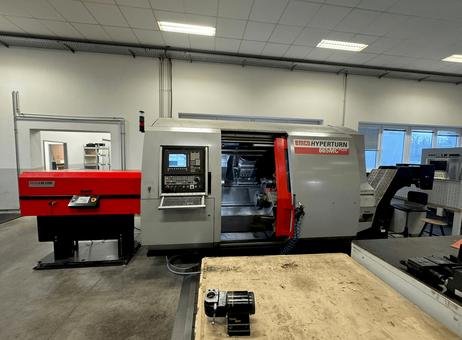

EMCO Hyperturn 665MC Plus cnc lathe

EMCO Hyperturn 665MC Plus cnc lathe
Top seller
Price on request
View price
Manufacturer
EMCO
Model
Hyperturn 665MC Plus
Year
2008
Location
Austria
Category
Lathes - CNC lathes
Product id
P241204393
Buy this machine
Language
Language
cnc струг EMCO Hyperturn 665MC Plus
Soustruh cnc EMCO Hyperturn 665MC Plus
EMCO Hyperturn 665MC Plus cnc drejebænk
EMCO Hyperturn 665MC Plus Drehmaschine CNC
cnc τόρνος EMCO Hyperturn 665MC Plus
EMCO Hyperturn 665MC Plus cnc lathe
Torno cnc EMCO Hyperturn 665MC Plus
Tour cnc EMCO Hyperturn 665MC Plus
cnc tokarski stroj EMCO Hyperturn 665MC Plus
EMCO Hyperturn 665MC Plus cnc eszterga
Tornio cnc EMCO Hyperturn 665MC Plus
cnc tekinimo staklės EMCO Hyperturn 665MC Plus
EMCO Hyperturn 665MC Plus cnc-draaibank
Tokarka CNC EMCO Hyperturn 665MC Plus
Torno CNC EMCO Hyperturn 665MC Plus
strung cnc EMCO Hyperturn 665MC Plus
EMCO Hyperturn 665MC Plus Токарный станок с ЧПУ
cnc strug EMCO Hyperturn 665MC Plus
EMCO Hyperturn 665MC Plus cnc svarv
Cnc torna EMCO Hyperturn 665MC Plus
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
744 mm
Turning Ø
429.3 mm
Ø above the bed
599.4 mm
Ø above transversing slide
500 mm
Length between centers
1000.8 mm
Type of CNC
SINUMERIK 840D
X-axis
281.9 mm
Z-axis
749.3 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
73.7 mm
Number of turrets
2
Number of tools on turret
12
Number of rotating tools
12
Turning speed
5000 rpm
Spindle motor power
29 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Emco Hyperturn 665MC Plus Y
Last availability date
28/04/2026
Show more
Automatic description (AI-Generated)
The EMCO Hyperturn 665MC Plus is a versatile 4-axis turn-mill center manufactured in 2008, designed for comprehensive machining of complex turned and milled parts. It features a multi-axis CNC system including Y-axis and B-axis capabilities, enabling precise and flexible machining operations. The machine is equipped with a powerful 29 kW spindle motor on the main spindle, which operates at speeds up to 5000 rpm, and a counter spindle motor with 22 kW power capable of reaching 7000 rpm. Both spindles utilize a hollow clamping cylinder with draw tube for secure workholding and include part ejector and pick-up devices to facilitate efficient handling of finished parts.
The tool turret is a 12-position VDI 30 radial turret with directional logic, supporting up to 12 driven tool stations. Additionally, the machine includes a motorized milling spindle with a 24-position tool magazine and a swiveling range of 210°, allowing for extensive tooling options. The milling spindle accommodates approximately 40 Capto C4 holders. The machine's control system is the Siemens SINUMERIK 840D, providing advanced CNC control for complex machining tasks.
Additional features include a coolant device integrated into the chip conveyor, a high-pressure pump rated at 14 bar with fine filtration, flushing pumps at 3.7 bar, and an electrostatic oil mist separator to maintain a clean working environment. The machine also comes with a hydraulic unit, machine lighting, control cabinet air conditioning, and interfaces for foot switch and signal lamps. Documentation is provided, including a handwheel, PC keyboard, network preparation, tool monitoring, and a cleaning gun.
The EMCO Hyperturn 665MC Plus is equipped with a Hainbuch BZI 80 center pull clamping device for the main spindle and a 3-jaw chuck (210 mm) for the counter spindle. The Y-axis has a travel range of ±50 mm, and both main and counter spindles have C-axis functionality. This machine is suitable for high-precision turning and milling applications requiring multi-axis capabilities and a broad tooling range.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 4-axis EMCO Hyperturn 665MC Plus turn-mill centre was manufactured in 2008. It features a multi-axis CNC system with Y-axis and B-axis for complete machining of turned and milled parts. Equipped with integrated spindle motors on both main and counter spindles, it offers a spindle speed up to 5000 min-1 for the main and 7000 min-1 for the counter spindle. Includes a 24-position tool magazine and SINUMERIK 840D control. If you are looking to get high quality turning and milling capabilities consider the EMCO Hyperturn 665MC Plus machine we have for sale. Contact us for more information about this machine.
Brand: SIEMENS
Model: SINUMERIK 840D
Brand: SINUMERIK 840D
Spindle speed range: 0-5000 rpm
Spindle motor power: 29 kW
Number of axis: 4
Tool turret: 12-position tool VDI 30 radial with directional logic for up to 12 driven tool stations
B-PowerMill: Motorised milling spindle with 24-position tool magazine, 210° swivelling range
Optional tool package: Includes stationary and driven tool holders, collet chuck holders, reducing sleeves, and operating spanners
Hollow clamping cylinder with draw tube / Part ejector and flushing through the counter spindle / Part pick-up device for finished parts
Part pick-up device for finished parts / Coolant device in the chip conveyor / High-pressure pump (14 bar) and fine filter
Flushing pumps (3.7 bar) / Control cabinet air conditioning unit / Electrostatic oil mist separator
Hydraulic unit / Machine light / Interface for foot switch / Signal lamp
Documentation including handwheel, PC keyboard, network preparation, tool monitoring, turning window, cleaning gun
Clamping device for main spindle: Hainbuch BZI 80 centre pull /
Counter spindle: 22 kw / counter spindle: 0-7000 rpm
Main spindle: kk 6 (passage 65 mm) / counter spindle: kk 6
Y-axis travel range: +/- 50 mm
C-axis for main and counter spindle
Counter spindle: 3-jaw chuck 210 mm
Approx. 40 capto c4 holders for milling spindle
Loader lm 1200
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
