Mori-Say 8/32 Multispindle automatic lathe

Mori-Say 8/32 Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
Mori-Say
Model
8/32
Year
2004
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P221114052
Buy this machine
Language
Language
Mori-Say 8/32
Multivřetenový automatický soustruh Mori-Say 8/32
Mori-Say 8/32
Mori-Say 8/32 Automatische Mehrspindel-Drehmaschine
Mori-Say 8/32
Mori-Say 8/32 Multispindle automatic lathe
Torno multihusillos automático Mori-Say 8/32
Tour multibroche Mori-Say 8/32
Mori-Say 8/32
Mori-Say 8/32
Tornio multimandrino Mori-Say 8/32
Mori-Say 8/32
Mori-Say 8/32
Wielowrzecionowy automat tokarski Mori-Say 8/32
Mori-Say 8/32
Mori-Say 8/32
Mori-Say 8/32 Многошпиндельный токарный станок
Mori-Say 8/32
Mori-Say 8/32
Otomatik çok milli torna tezgahı Mori-Say 8/32
Get price & details
Details
About this seller
Specifications
Max. Ø
32 mm
Nbr of spindles
8
Type of CNC
Spindle speed
3750 rpm
-------------------
Weight
11500 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
02/04/2026
Show more
Automatic description (AI-Generated)
This listing is for a Mori-Say 8/32 multispindle automatic lathe, manufactured in 2004. The machine is designed for high-precision machining with 8 spindles and supports a maximum bar diameter of 32 mm. It operates at spindle speeds ranging from 270 up to 3,750 rpm, allowing for versatile machining applications. The spindle center distance is 360 mm, and the maximum bar feed is 125 mm, suitable for efficient bar machining processes.
The lathe weighs approximately 11,500 kg, indicating a robust industrial construction. It features locking mechanisms utilizing HIRTH type rings to ensure stability during operation. The machine includes automatic lubrication for improved maintenance and longevity.

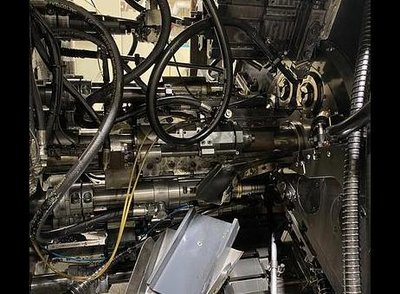

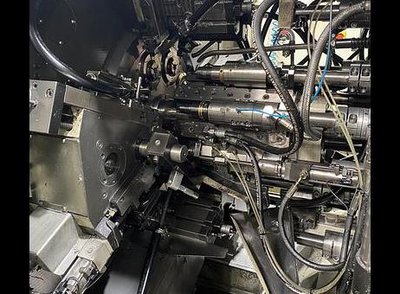

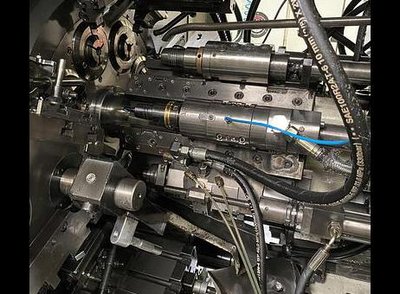

In terms of slides, it is equipped with 8 front slides and 4 cross slides positioned at 1, 2, 5, and 6, as well as 4 radial slides located at positions 3, 4, 7, and 8. Position 8 has a double slide, and positions 4 and 8 feature pick-up spindles with brake/clutch functionality. These components allow for complex and precise machining operations.
Additional features include a hinged belt chip conveyor for efficient chip removal, a high-pressure coolant system to support machining, and a bar holder designed for 3-meter bars. The machine is also equipped with various cams and gears, along with an interface for a bar loader, enhancing automation capabilities.

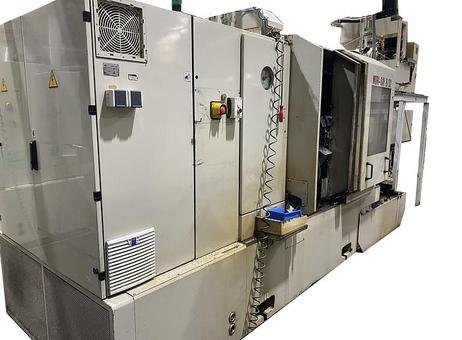

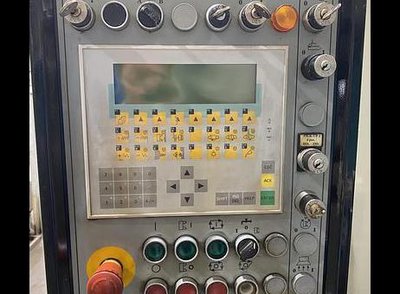

The machine's exterior shows some signs of use and dirt accumulation but no visible major damage. It has closed panels and a ventilation fan for cooling. Safety and operational controls include an emergency stop button and a control panel mounted on the side. A coiled air hose is attached to the machine side, with a blue tray positioned underneath, which may assist in maintenance or cleaning tasks.
Overall, this Mori-Say 8/32 multispindle lathe offers a comprehensive set of features suitable for high-volume, precise bar machining in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Number of spindles 8
Max bar diameter [mm] 32
Spindle revolutions [rpm] 270 - 3,750
Spindle center distance [mm] 360
Max bar feed [mm] 125
Machine weight approx. [kg] 11,500
locking by means of HIRTH type rings
automatic lubrication
8 front slides
4 cross slides pos. 1, 2, 5, 6
4 radial slides pos. 3, 4, 7, 8
double slide in pos. 8
2x pick-up spindle (pos. 4 + 8)
brake / clutch pick-up spindle pos. 4
brake / clutch pick-up spindle pos. 8
hinged belt chip conveyor
high pressure coolant system
bar holder for 3 m bars
various cams
various gears
bar loader interface
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2018
Offers online
57
Last activity
April 28, 2026
Seller's description
Number of spindles 8
Max bar diameter [mm] 32
Spindle revolutions [rpm] 270 - 3,750
Spindle center distance [mm] 360
Max bar feed [mm] 125
Machine weight approx. [kg] 11,500
locking by means of HIRTH type rings
automatic lubrication
8 front slides
4 cross slides pos. 1, 2, 5, 6
4 radial slides pos. 3, 4, 7, 8
double slide in pos. 8
2x pick-up spindle (pos. 4 + 8)
brake / clutch pick-up spindle pos. 4
brake / clutch pick-up spindle pos. 8
hinged belt chip conveyor
high pressure coolant system
bar holder for 3 m bars
various cams
various gears
bar loader interface
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Specifications
Max. Ø
32 mm
Nbr of spindles
8
Type of CNC
Spindle speed
3750 rpm
-------------------
Weight
11500 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
02/04/2026
Show more
Automatic description (AI-Generated)
This listing is for a Mori-Say 8/32 multispindle automatic lathe, manufactured in 2004. The machine is designed for high-precision machining with 8 spindles and supports a maximum bar diameter of 32 mm. It operates at spindle speeds ranging from 270 up to 3,750 rpm, allowing for versatile machining applications. The spindle center distance is 360 mm, and the maximum bar feed is 125 mm, suitable for efficient bar machining processes.
The lathe weighs approximately 11,500 kg, indicating a robust industrial construction. It features locking mechanisms utilizing HIRTH type rings to ensure stability during operation. The machine includes automatic lubrication for improved maintenance and longevity.
In terms of slides, it is equipped with 8 front slides and 4 cross slides positioned at 1, 2, 5, and 6, as well as 4 radial slides located at positions 3, 4, 7, and 8. Position 8 has a double slide, and positions 4 and 8 feature pick-up spindles with brake/clutch functionality. These components allow for complex and precise machining operations.
Additional features include a hinged belt chip conveyor for efficient chip removal, a high-pressure coolant system to support machining, and a bar holder designed for 3-meter bars. The machine is also equipped with various cams and gears, along with an interface for a bar loader, enhancing automation capabilities.
The machine's exterior shows some signs of use and dirt accumulation but no visible major damage. It has closed panels and a ventilation fan for cooling. Safety and operational controls include an emergency stop button and a control panel mounted on the side. A coiled air hose is attached to the machine side, with a blue tray positioned underneath, which may assist in maintenance or cleaning tasks.
Overall, this Mori-Say 8/32 multispindle lathe offers a comprehensive set of features suitable for high-volume, precise bar machining in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
About this seller
Client type
Machinery dealer
Active since
2018
Offers online
57
Last activity
April 28, 2026

---
