Okuma LB 3000 MY cnc lathe

Okuma LB 3000 MY cnc lathe
Top seller
View price
Okuma
LB 3000 MY
2008
Spain
Lathes - CNC lathes
P250819083
+34 679 …
Turning length
1050 mm
Turning Ø
380 mm
Ø above the bed
530 mm
Ø above transversing slide
420 mm
Length between centers
500 mm
Type of CNC
Okuma OSP P200-L
X-axis
260 mm
Z-axis
500 mm
Max workpiece weight
250 kg
Spindle taper
a2-8
Spindle bore
80 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
4200 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
Weight
6200 kg
as-is, where-is
Datasheet
Okuma LB 300 MY
19/05/2026

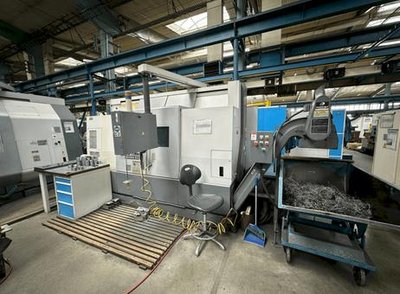

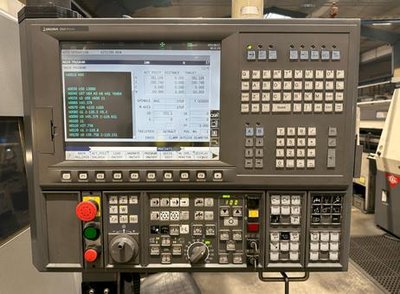

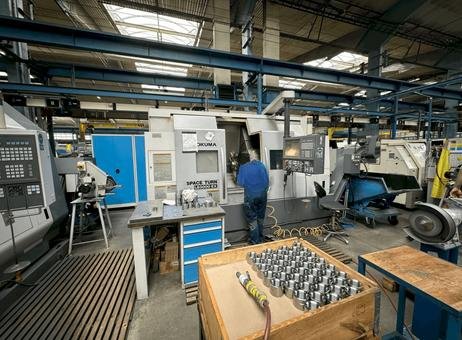

This Okuma LB 3000 MY CNC lathe, manufactured in 2008, is a robust 4-axis turning center designed for precision machining. It features a 12-position turret equipped exclusively with driven tools, allowing for versatile and efficient operations. The machine supports C-axis and Y-axis functionality, enhancing its capability to perform complex machining tasks. The main spindle is powered by a 22 kW motor, delivering a maximum spindle speed of 4200 rpm. It has a turning diameter capacity of 380 mm and a maximum turning length of 1050 mm, suitable for medium-sized workpieces. The machine weighs approximately 6200 kg, indicating a solid and stable construction. Additional specifications include a chuck size of 250 mm and a bar capacity of 75 mm. The turret indexing time is rapid at 0.2 seconds, improving productivity. The lathe also features automatic tool load monitoring and a Renishaw automatic tool measurement arm, which assists in maintaining machining accuracy. From the images, the machine is shown in an industrial factory setting with an operator present, indicating it is currently in use. A control panel with multiple buttons and a display screen is located on the right side, facilitating user interaction. The lathe is equipped with a hinged belt-type side chip conveyor for efficient chip removal, enhancing the cleanliness and safety of the working environment. The surrounding area is clean and organized, with workpieces placed nearby and cleaning tools visible, reflecting good maintenance practices. The machine includes a double foot pedal for chuck and tailstock control, and a spindle oil chiller is part of the setup. Also visible are a blue cabinet and metal grating floor mats in front of the machine, contributing to operator comfort and safety. This Okuma LB 3000 MY is suitable for high-quality turning applications requiring precision and versatility. For further information or inquiries, please contact us. This 4-axis Okuma LB 3000 MY was manufactured in 2008. It features a 12-position turret with all driven tools, C-axis and Y-axis functionality, and a main spindle motor of 22 kW. The machine includes a hydraulic and programmable tailstock, a chuck size of 250 mm, and a bar capacity of 75 mm. If you are looking to get high-quality turning capabilities, consider the Okuma LB 3000 MY machine we have for sale. Contact us for more information. Machine weight: 6200
Brand: Okuma
Model: OSP P200-L
Spindle speed range: 4200 rpm
Spindle motor power: 22 kW
Number of axis: 4
X-Axis Rapid Traverse: 20 m/min
Z-Axis Rapid Traverse: 25 m/min
Number of turrets: 1
Spindle oil chiller included
Side chip conveyor (hinged belt type)
Double foot pedal for chuck and tailstock control
Includes transformer, manuals, parts list, and schematics
Torque: 620 nm
Spindle nose: a2-8
Bar capacity: 75 mm

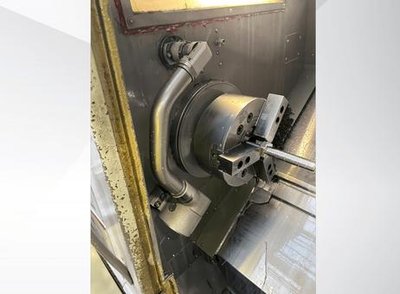

Chuck: 250 mm smw autoblok with quick jaw change
Swing diameter: 520 mm
Max turning diameter: 380 mm
Max turning length: 1050 mm
12-position turret, all driven tools
Turret indexing time: 0. 2 seconds
Equipped with static and driven tool holdersTools
Automatic tool load monitoring
Renishaw automatic tool measurement arm
Driven tools motor: 5.5 kW
Driven tool speed: up to 4000 rpm
Currently in operation
