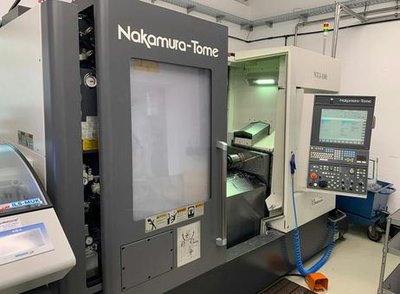

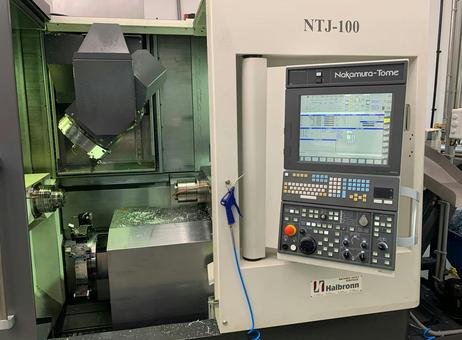

Nakamura NTJ-100 CNC lathe

Nakamura NTJ-100 CNC lathe
Verified seller
Price on request
Make an offer
Manufacturer
Nakamura
Model
NTJ-100
Year
2015
Location
Germany
Category
Lathes - CNC lathes
Product id
P260623196
Buy this machine
Language
Language
CNC струг Nakamura NTJ-100
CNC soustruh Nakamura NTJ-100
Nakamura NTJ-100 CNC-drejebænk
Nakamura NTJ-100 CNC-Drehmaschine
Τόρνος CNC Nakamura NTJ-100
Nakamura NTJ-100 CNC lathe
Torno CNC Nakamura NTJ-100
Tour CNC Nakamura NTJ-100
CNC tokarski stroj Nakamura NTJ-100
Nakamura NTJ-100 CNC esztergagép
Tornio CNC Nakamura NTJ-100
Nakamura NTJ-100 CNC tekinimo staklės
Nakamura NTJ-100 CNC-draaibank
Tokarka CNC Nakamura NTJ-100
Torno CNC Nakamura NTJ-100
Strung CNC Nakamura NTJ-100
Nakamura NTJ-100 Токарный станок с ЧПУ
CNC strug Nakamura NTJ-100
Nakamura NTJ-100 CNC-svarv
CNC torna Nakamura NTJ-100
Get price & details
+49 814 …
Show phone
Details
About this seller
Specifications
Turning length
678 mm
Turning Ø
175 mm
Ø above the bed
mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
330 mm
Z-axis
1040 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
5000 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
-
× -
× -
Weight
kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Nakamura NTJ-100
Last availability date
23/06/2026
Show more
Automatic description (AI-Generated)
The Nakamura NTJ-100 is a CNC lathe machine manufactured in 2015, equipped with a Fanuc 31i-B control system. It offers a turning diameter of 175 mm and a maximum turning length of 678 mm. The machine features a dual spindle setup with motor spindles. The main spindle operates at speeds up to 4,500 rpm with an 11 kW power rating and a bar passage of 65 mm. It includes a hollow clamping cylinder and a collet chuck, with C-axis positioning accuracy of 0.001°. The counter spindle runs at speeds up to 5,000 rpm, powered by a 7.5 kW motor, with a bar passage of 51 mm and similar clamping and C-axis features.
This lathe is equipped with two tool turrets. Tool turret I has 12/24 stations, BMT tool holders, and a tool drive speed of 6,000 rpm. It provides X-axis travel of 330 mm, Y-axis travel of 80 mm (+/- 40 mm), Z-axis travel of 1,040 mm, and B-axis rotation of 182° (+/- 91°). Tool turret II also has 12/24 stations with BMT holders and 6,000 rpm tool drive, offering X-axis travel of 127 mm, Y-axis travel of 65 mm (+/- 32.5 mm), and Z-axis travel of 678 mm.
Additional equipment includes a chip conveyor for efficient chip removal, two high-pressure coolant pumps, and a bar loader (IEMCA Master 80 HF) with a 4-meter capacity. Finished parts are handled via a part gripper and conveyor belt. The machine also features an electronic handwheel for setup mode.

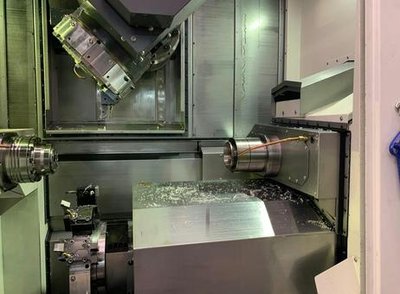

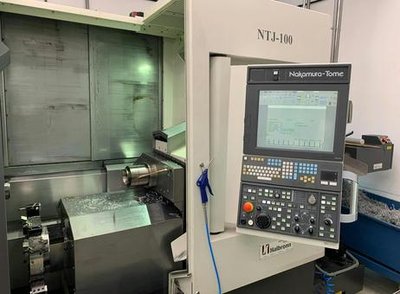

Visual inspection confirms the presence of the dual spindle setup and tool holders, a control panel with screen and various knobs, a coolant nozzle inside the machine, and a blue air blow gun mounted on the side. Metal shavings visible inside the machine indicate recent use. This comprehensive setup makes the Nakamura NTJ-100 suitable for precision turning tasks requiring flexible tool handling and efficient material processing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Nakamura NTJ-100
Year of manufacture: 2015
Control: Fanuc 31i-B
Turning diameter: 175 mm
Turning length: 678 mm
____________
Description:
General:
Year of manufacture: 2015
Control: Fanuc i 31-B
Turning diameter: 175 mm
Max. turning length: 678 mm
Main spindle:
Technology: Motor spindle
Speed: 4,500 rpm
Power: 11 kW
Bar passage: 65 mm
C-axis: 0.001°
Clamping cylinder: Hollow clamping cylinder
Chuck: Collet chuck
Counter spindle:
Technology: Motor spindle
Speed: 5,000 rpm
Power: 7.5 kW
Bar passage: 51 mm
C-axis: 0.001°
Clamping cylinder: Partial hollow clamping cylinder
Chuck: Collet chuck
Tool turret I (X/Y/Z/B):
Technology: Tool turret
Number of stations: 12/24
Tool holder: BMT
Tool drive: 6,000 rpm
X-axis: 330 mm
Y-axis: 80 mm (+/- 40 mm)
Z-axis: 1,040 mm
B-axis: 182° (+/- 91°)
Tool turret II (X/Y/Z):
Technology: Tool turret
Number of stations: 12/24
Tool holder: BMT
Tool drive: 6,000 rpm
X-axis: 127 mm
Y-axis: 65 mm (+/- 32.5 mm)
Z-axis: 678 mm
Equipment / Accessories:
Chip removal: Chip conveyor
Coolant supply: 2x HPC coolant pump

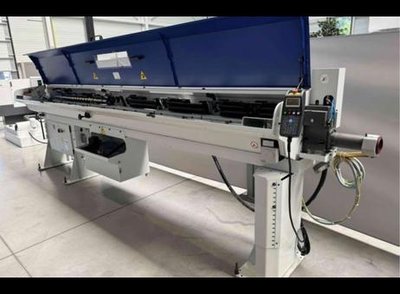

Bar loader: IEMCA Master 80 HF - 4 meters
Finished part removal: Part gripper + conveyor belt
Setup mode: Electronic handwheel
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
